Hantek AC/DC Current Clamp Meter for Oscilloscope CC-65 20KHz Bandwidth 1mV/10mA 65A with BNC Type Connector
AC/DC Current Clamp CC-65:

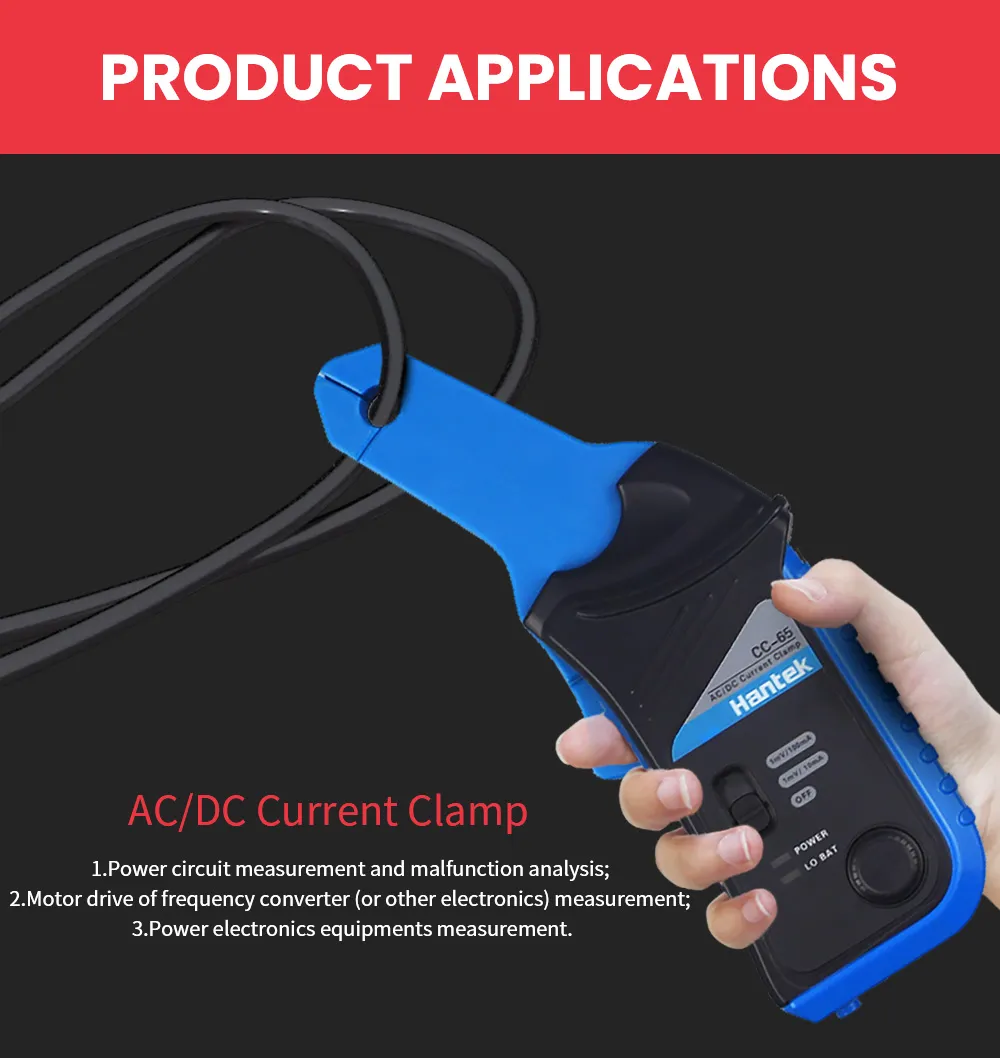

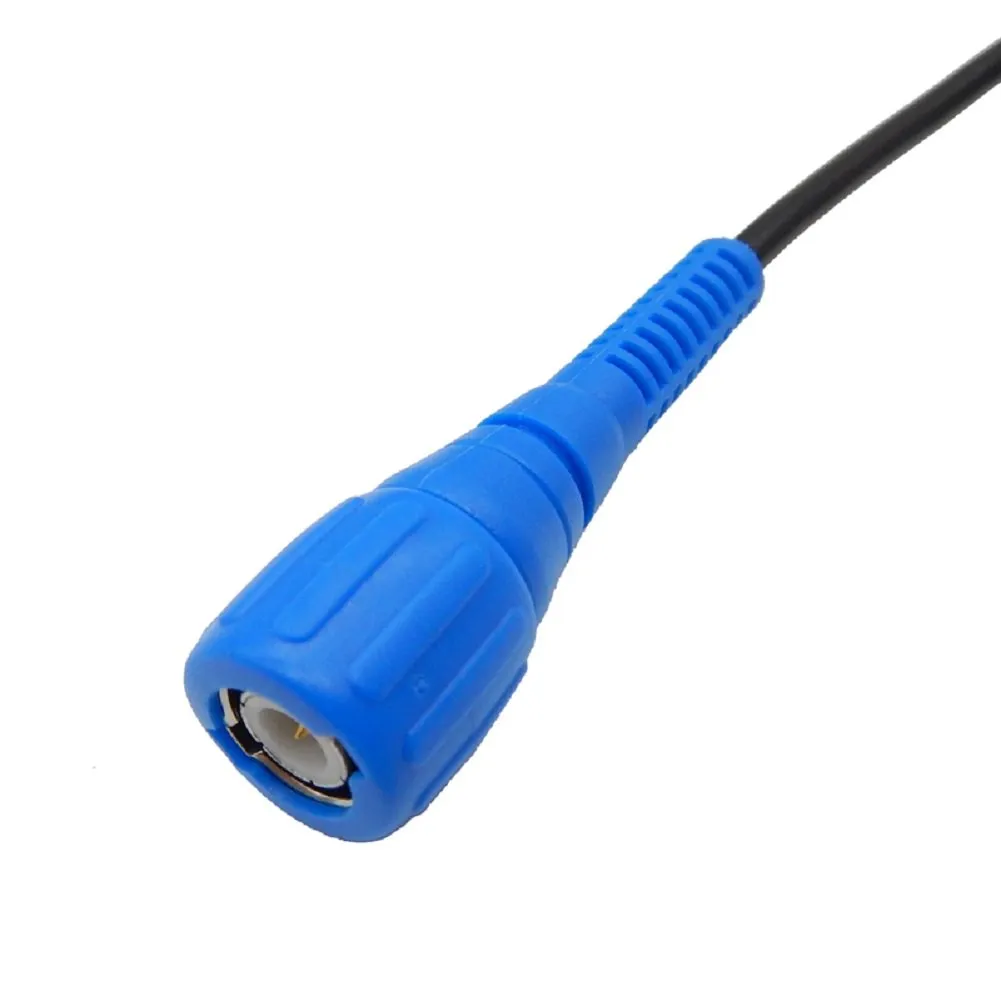

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with BNC plug.

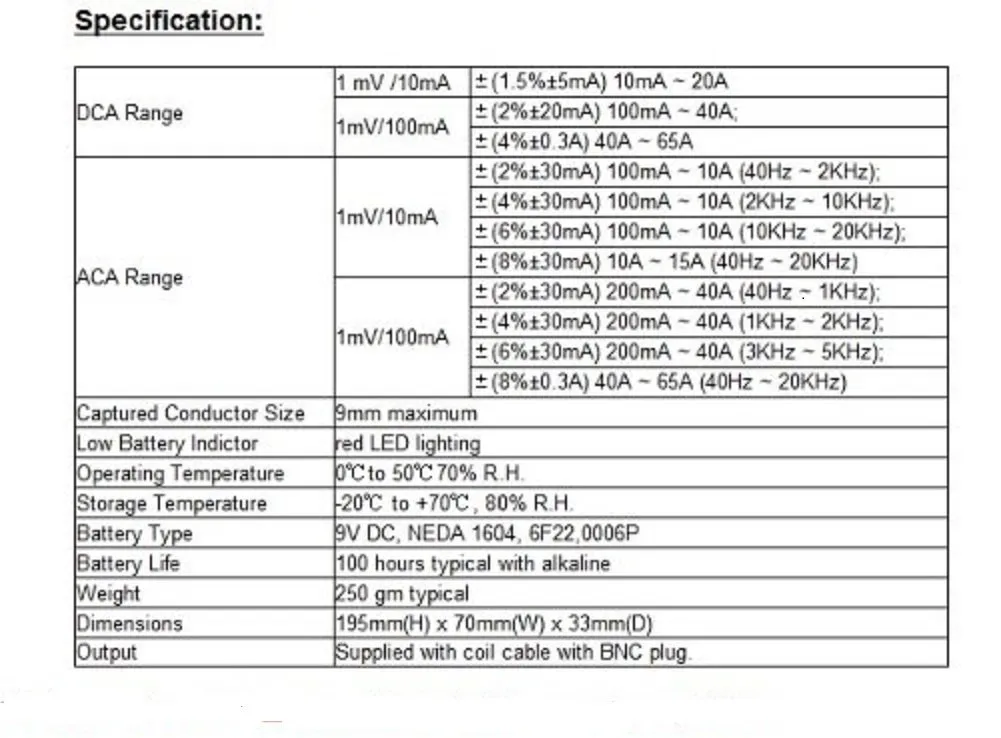

Specification:
DCA Range:
1 mV /10mA +/-(1.5%+/-5mA) 10mA ~ 20A
1mV/100mA+/-(2%+/-20mA) 100mA ~ 40A
+/-(4%+/-0.3A) 40A ~ 65A
Operating Temperature: 0Cto 50C 70% R.H.
Storage Temperature: -20C to +70C, 80% R.H.

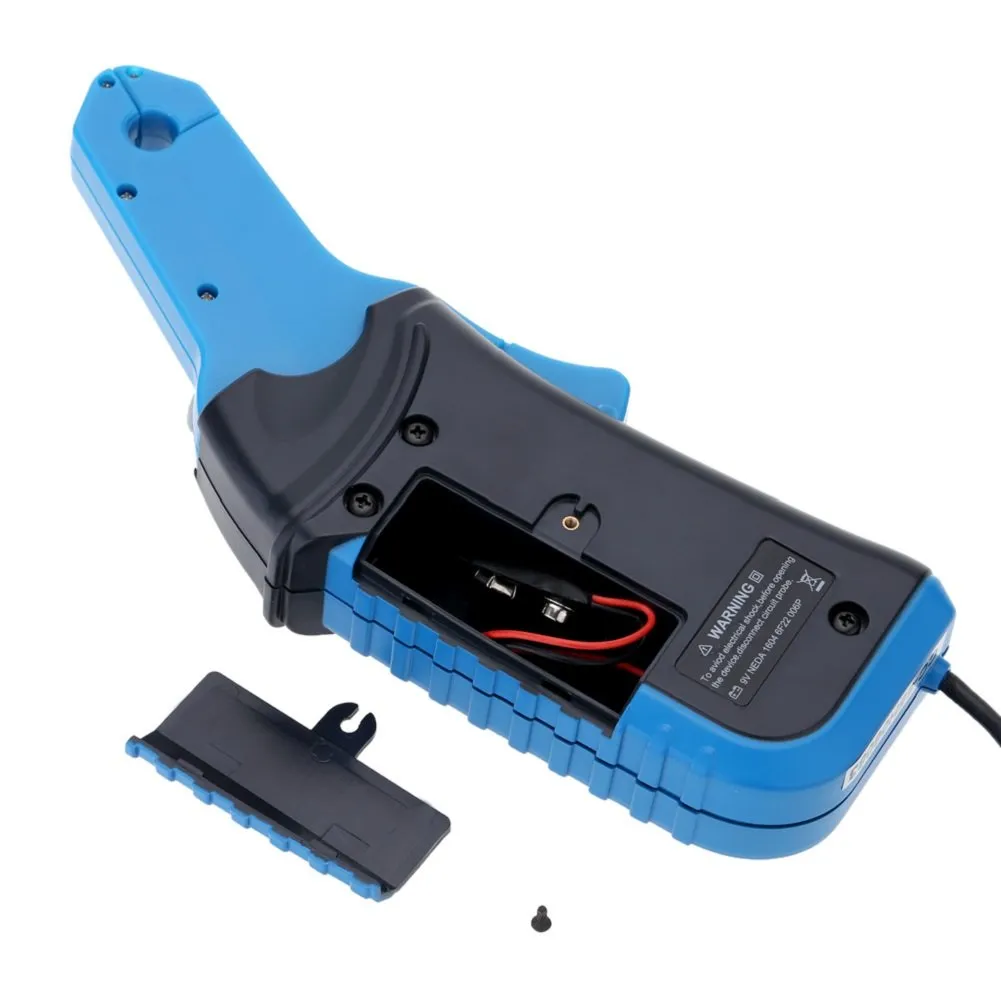

Battery Type: 9V DC, NEDA 1604, 6F22,0006P
ACA Range:
1mV/10mA:+/-(2%+/-30mA) 100mA ~ 10A (40Hz ~ 2KHz)
+/-(4%+/-30mA) 100mA ~ 10A (2KHz ~ 10KHz)
+/-(6%+/-30mA) 100mA ~ 10A (10KHz ~ 20KHz)
+/-(8%+/-30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA
+/-(2%+/-30mA) 200mA ~ 40A (40Hz ~ 1KHz)
+/-(4%+/-30mA) 200mA ~ 40A (1KHz ~ 2KHz)
+/-(6%+/-30mA) 200mA ~ 40A (3KHz ~ 5KHz)
+/-(8%+/-0.3A) 40A ~ 65A (40Hz ~ 20KHz)
